OneTouch® UltraMini® - Getting To Know Your System

Published 2024-10-21
Updated 2025-11-06
Products OT Ultra Mini Meter

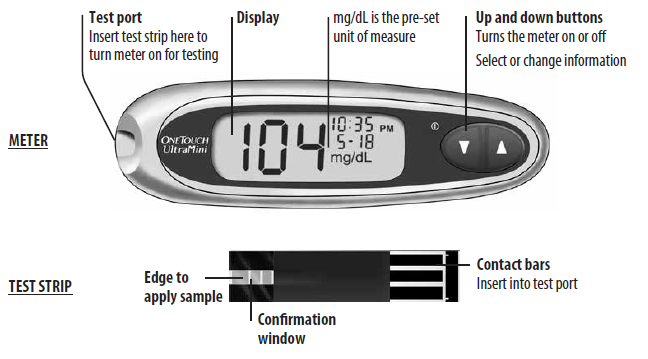

Getting To Know Your System:



  • Included With Your Kit:

    • OneTouch® UltraMini® Meter (battery included)

    • Lancing Device

    • Sterile Lancet(s)

    • Carrying Case

      • If any of these items are missing from your kit, contact OneTouch® Customer Care.



  • Available Separately:



    • OneTouch® Ultra® Test Strips

    • OneTouch® Ultra® Control Solution

    • Clear Cap For AST Testing

      • For availability of Control Solution, ask for Control Solution where you obtain your Test Strips.
    • Warning: Keep the meter and testing supplies away from young children. Small items such as the battery door, battery, test strips, lancets, and control solution vial cap are choking hazards.



Turning your meter on:



1. To perform a test, insert a test strip as far as it will go. The display will turn on and the meter will briefly perform system checks. Or, to change the time and date, start with the meter off, then press and hold ↓ for five seconds until the start-up test screen appears.

2. After the start-up test screen, the pre-set time and date will appear on the display. Or, if you want to turn the meter on to review past results, start with the meter off, then press and release ↓.



3. Every time you turn your meter on, a start-up test screen will appear for two seconds. All segments of the display should appear briefly on the start-up test screen to tell you that the meter is working properly. To check that all display segments are working, as soon as the start-up test screen appears, press and hold ↑ to keep the start-up test screen display on. Release ↑ to proceed to the next step. If the meter does not power on, try changing the meter battery.



Turning your meter off:



  • There are several ways to turn your meter off:
    • Press and hold ↓ for two seconds, when reviewing past results.
    • Your meter will turn off by itself if left alone for two minutes.
    • Before or after completing a test, remove the test strip.
      • CAUTION: If any information is missing from the start-up test screen, there may be a problem with the meter. If the problem persists, contact OneTouch® Customer Care.

AW 06629005A
